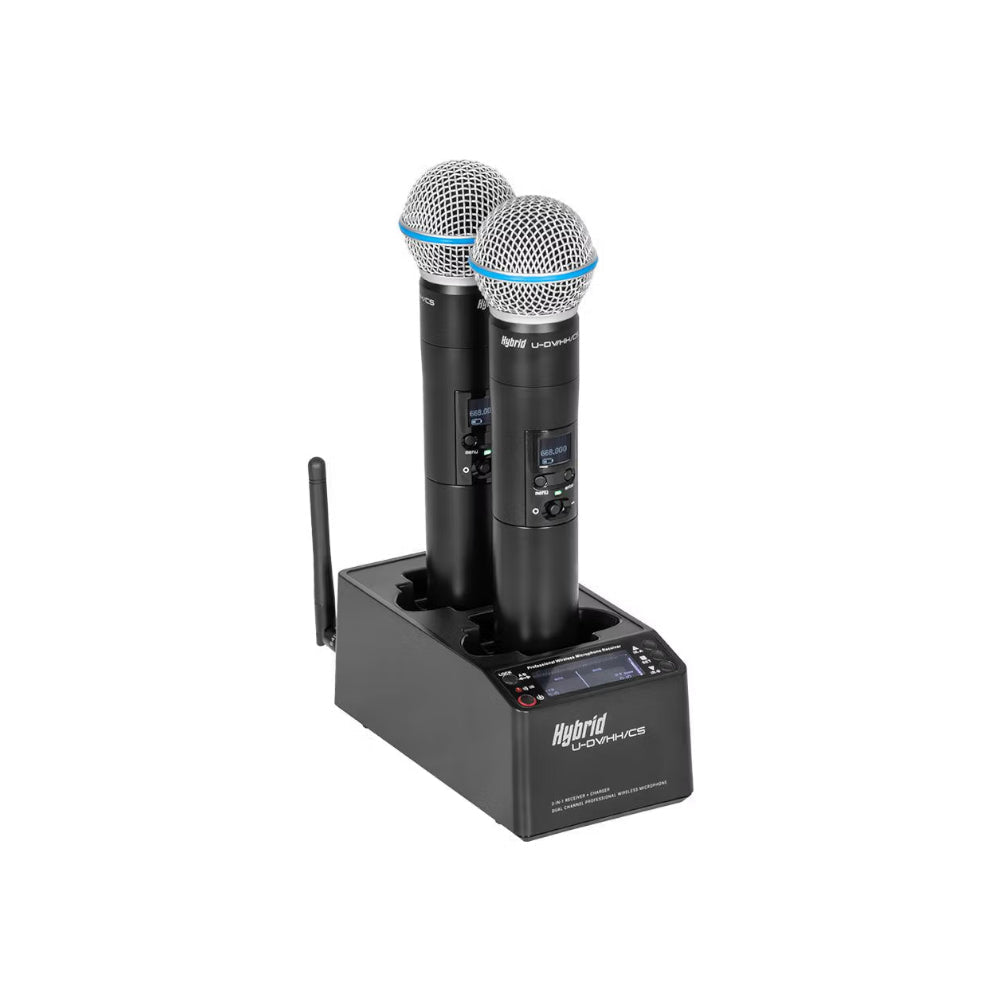

Hybrid-U-DV/HH/CS UHF Dual Handheld Wireless Microphone

Hybrid U-DV/HH/CS Dual Handheld UHF Wireless Microphone System with Charging Station

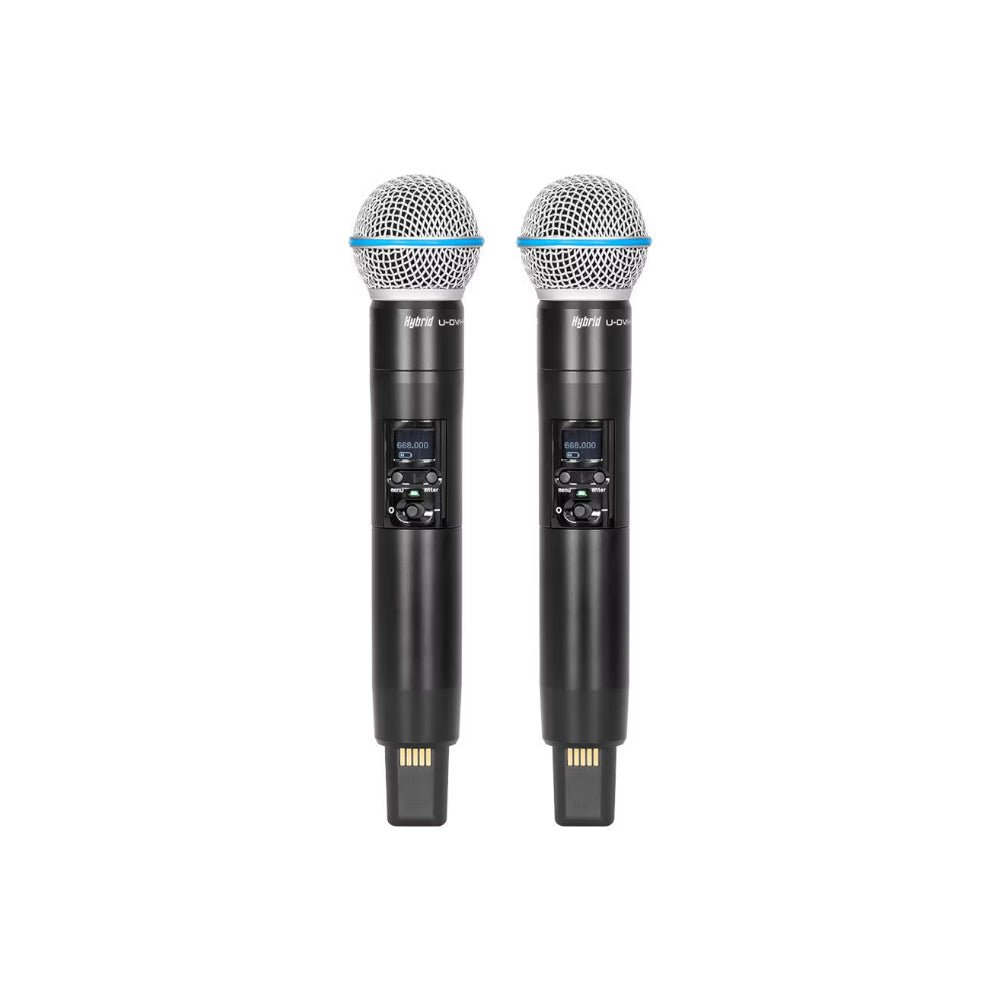

The Hybrid U-DV/HH/CS is a dual handheld UHF wireless microphone system designed for stages, meetings, presentations and events. Its two handheld transmitters use cardioid pickup patterns to focus on sound from the front of each microphone. Automatic frequency matching simplifies setup, while selectable RF channels allow users to find a suitable operating frequency when interference is present. The system offers a stated working distance of up to 40 metres under appropriate operating conditions.

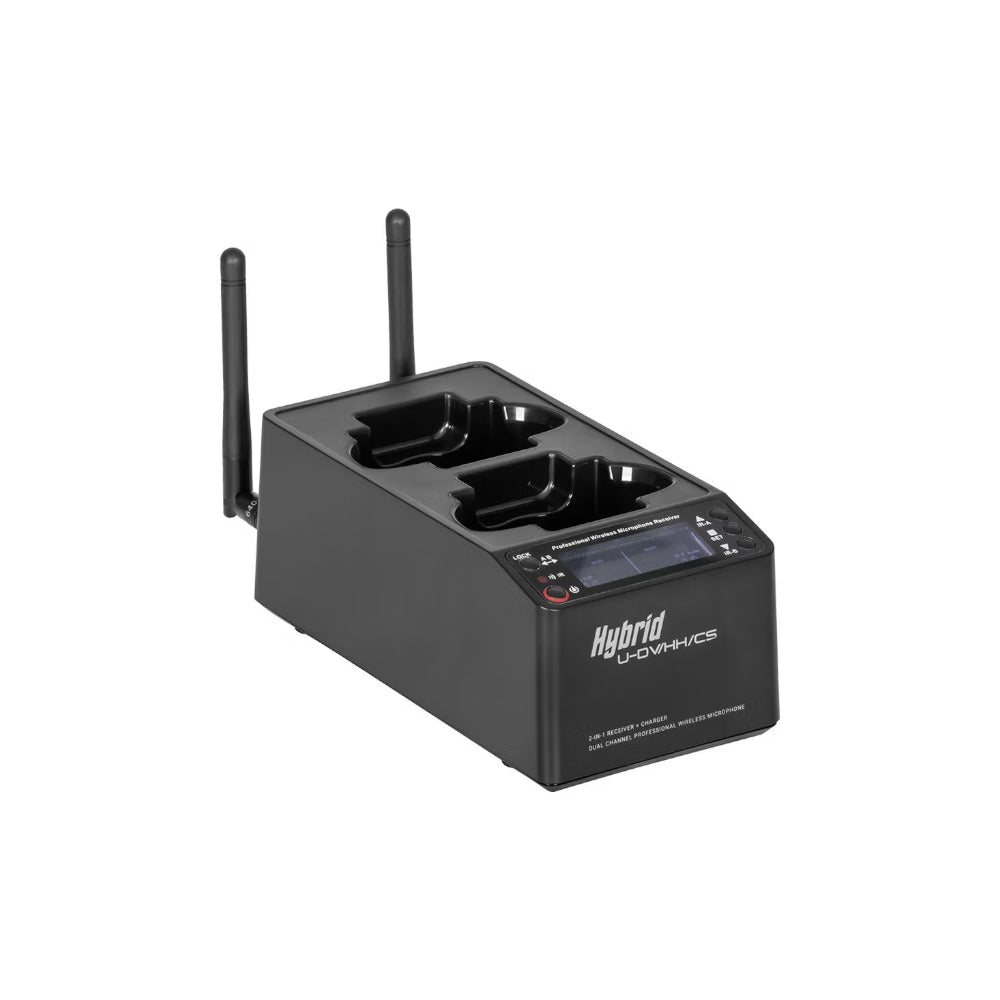

The receiver also functions as a charging station for the handheld microphones, providing a convenient central point for storage and charging. An LCD display, lock function and adjustable sensitivity provide additional control during setup and operation. The receiver offers a low-noise balanced audio output and operates from a supplied 12 VDC, 1000 mA power output. With a specified dynamic range of 100 dB, signal-to-noise ratio above 98 dB and microphone battery life of approximately five hours, the system brings practical wireless functionality to compatible professional audio setups.

Features

• Dual handheld UHF wireless microphone system
• Receiver doubles as a microphone charging station
• Automatic frequency matching
• Selectable RF channels
• Cardioid microphone directivity
• Adjustable microphone sensitivity
• Lock function helps prevent unintended setting changes
• LCD information display

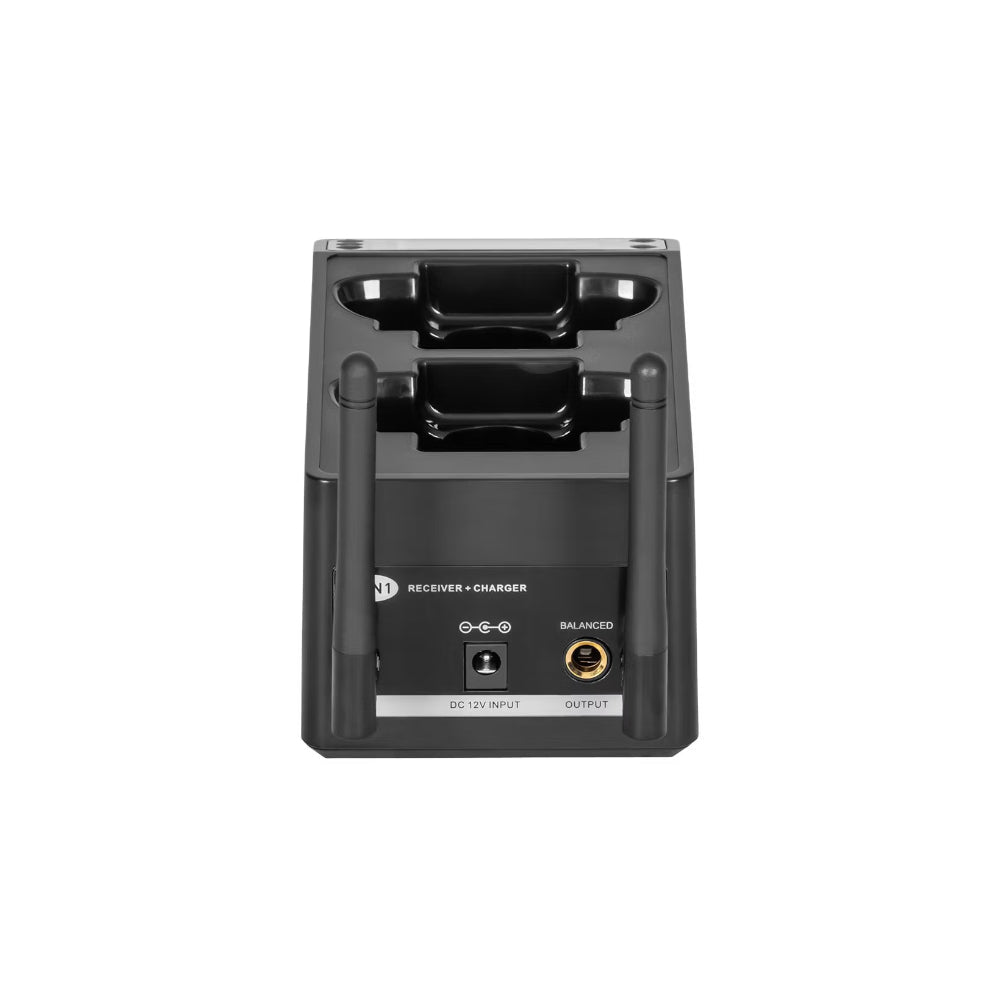

• Low-noise balanced audio output
• Stated working distance of up to 40 m
• Approximately five hours of microphone battery life
• Designed for stages, meetings, presentations and events

Specifications

General

• Brand: Hybrid
• Model: U-DV/HH/CS
• Product type: Dual handheld wireless microphone system
• Wireless frequency range: UHF 470–786 MHz
• General frequency response: 40 Hz–18 kHz
• Audio-frequency response: 65 Hz–15 kHz (±3 dB)
• Frequency stability: ±0.005%
• Modulation mode: Wide-band FM
• Modulation range: 25 MHz
• RF channels: 50 per microphone, subject to confirmation
• Channel spacing: 250 kHz
• Working distance: Up to 40 m
• Dynamic range: 100 dB
• Maximum deviation: ±45 kHz
• Total harmonic distortion: <0.5%
• Balanced audio output: ±500 mV
• Microphone directivity: Cardioid

Microphones

• Modulation mode: FM
• Stated turntable bandwidth: 50 MHz
• Stated frequency interval: 250 MHz, subject to confirmation
• Maximum deviation: ±45 kHz
• Harmonic radiation: <−55 dBc
• Transmitter power: 10 mW

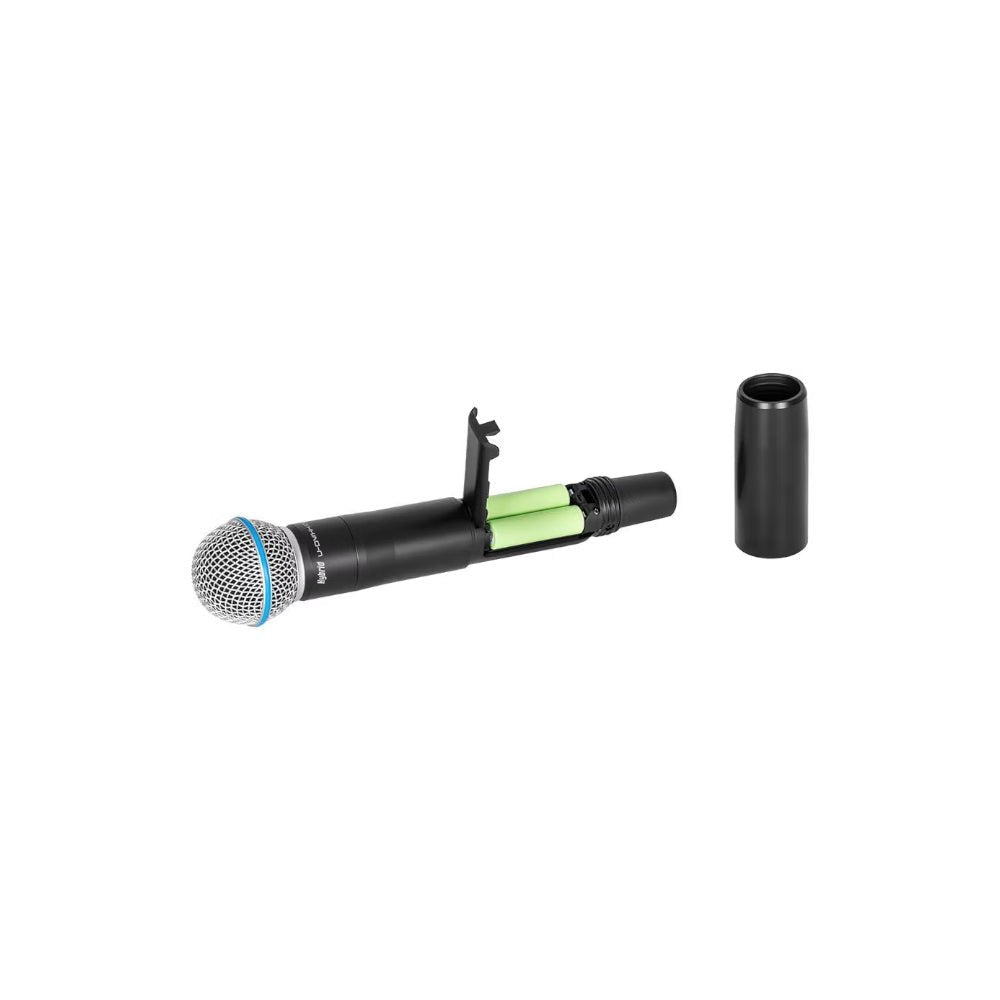

• Battery voltage: 3 V
• Battery life: Approximately 5 hours

Receiver

• Power-supply input: 220–240 VAC, 50/60 Hz
• Power-supply output: 12 VDC, 1000 mA
• Power consumption: 6 W
• Signal-to-noise ratio: >98 dB
• P/N ratio: >80 dB
• F/N ratio: >80 dB
• Receiver sensitivity: 5 dBu
• Charging function: Yes

What’s in the Box?

• 1 × UHF receiver and charging station
• 2 × Handheld wireless microphones
• Power supply: Requires confirmation
