Midas DL16 16-Channel Digital Stage Box

Please be informed that this item comes with an international adaptor, you will need to get SA converter for it.

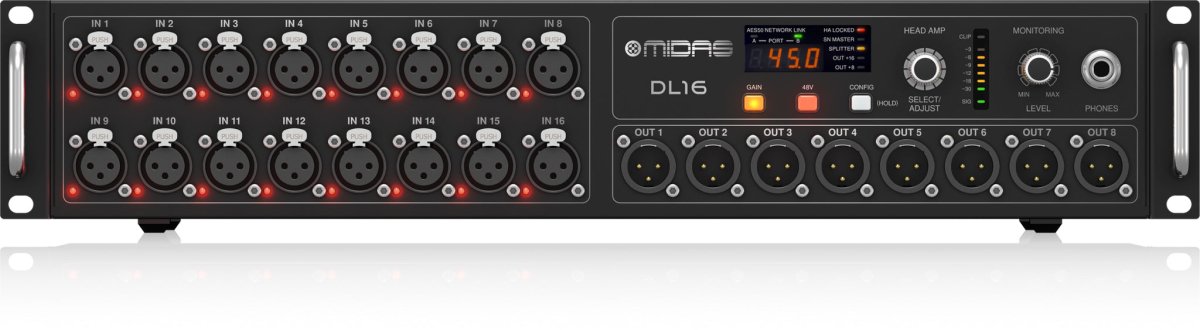

Midas DL16 16-Channel Digital Stage Box

16 Input, 8 Output Stage Box with 16 Midas Microphone Preamplifiers, ULTRANET and ADAT Interfaces

Product Features

• 16 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power
• 8 electronically balanced low impedance line level outputs
• ULTRANET personal monitoring system connectivity for in-ear applications
• Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability
• Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes-no merger or router required
• Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors
• Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
• All settings programmable from front panel controls or console
• Status indicator LEDs on front panel
• Headphones output assignable to any of the inputs or outputs for on-stage monitoring
• MIDI In/Out for bidirectional communication between Midas M32 Series console and on-stage MIDI devices
• Features Neutrik etherCON* AES50 and ULTRANET network ports
• Rugged 2U rackmount chassis for durability in portable applications
• Auto-ranging universal switch-mode power supply
• Designed and engineered in the U.K.

DL16

Digital mixing has revolutionized virtually everything in the live entertainment production workflow, and now that same cutting-edge technology brings live production signal distribution into the modern age. The DL16 Stage Box provides 16 of our award-winning microphone preamplifiers with switchable +48 V phantom power; 8 balanced analogue XLR returns at the stage end; an integrated ULTRANET output for connecting to BEHRINGER P16-M personal monitor mixers; plus connectivity for your ADAT-compatible outboard equipment.

MIDAS - The Legend in Sound Quality

Ever since our formation in the 1970s, we have had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations worldwide, our XL4 and Heritage H3000 consoles quickly became industry standards.

ULTRANET – Seamless Integration

The world-renowned engineers at Klark Teknik, Midas, Turbosound and Behringer have all come together to create something truly innovative that will change live and studio workflow forever – ULTRANET. This revolutionary technology seamlessly transmits up to 16 independent channels of 24-bit digital audio and control data via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems.

ADAT-Ready

Many manufacturers have adopted the ADAT digital interface as a means of transferring digital data between certain types of audio devices, such as mixers, synthesizers, lighting rigs and effect processors. The DL16’s onboard ADAT Outputs enable splitting the high-quality Midas Pro Series preamp signals to outboard devices – including recording systems. When more channels are required, these optical sockets can alternately be used to connect ADAT-equipped D/A converters (such as the Behringer ADA8200) for up to 16 additional analogue outputs.

Dual AES50 Ports for Massive Connectivity

Connecting over a single shielded (STP) CAT5 cable, up to three DL16s can be daisy-chained to deliver 48 channels in and 24 out to the stage. KLARK TEKNIK’s AES50 simultaneously provides high channel counts, extremely low and deterministic latencies, accurate phase-aligned networked clock distribution, error detection, network redundancy, with simple deployment and ease of use to meet the needs of the live performance industry.

Remotely Controllable Preamps Make Setup a Breeze

DL16’s ingenious monitoring/head amp control section allows you to select any of the 16 inputs, 8 bus outputs or P-16 output streams for immediate line checks. In addition to signal metering at the stage box, you can also set individual input channel Gain, apply +48 V phantom power – and listen directly to the input signal via headphones and much more.

Assignable Headphones Output for On-Stage Monitoring

For easy set up and signal routing verification, a headphones jack is conveniently located on the front of the DL16, giving you the option of listening directly to any of the 16 inputs.

MIDI In/Out

Using scene automation has never been simpler or more convenient. The automation scenes allow MIDI events to be incorporated, so that external MIDI-compatible devices can be controlled as part of a scene change via your console’s MIDI output. Additionally, console events can be triggered from an external MIDI source via your console’s MIDI input

Unparalleled Performance

As you can see, the DL16 digital stage box is the ideal 16 x 8 signal distribution solution thanks to our legendary remote controllable mic preamps, Klark Teknik’s AES50 connectivity and a wealth of other professional-grade features. Built tough enough to withstand the rigors of the road, the DL16 only takes up two rack spaces and connects to FOH with a single, inexpensive CAT5 cable.
