Audiocenter 2-Channel 3600W Power Amplifier [CT3600]

Audiocenter 2-Channel 3600W Power Amplifier [CT3600]

The Audiocenter CT3600 is a professional two-channel power amplifier designed for use with compatible passive loudspeakers in sound reinforcement systems. It is suitable for DJs, live performances, houses of worship, event venues and fixed audio installations where an external amplifier is required. With two amplifier channels and flexible operating modes, the CT3600 can be incorporated into different audio configurations depending on the connected loudspeakers and system requirements. It is intended for users who need a rack-mounted amplifier to support professional audio equipment, including compatible mixers, audio processors and passive speaker systems.

The CT3600 uses Class H amplifier technology and supports Stereo, Parallel and Bridge operating modes. Its published output ratings include 1200W per channel at 8Ω, 1800W per channel at 4Ω and 3600W bridged at 8Ω. Balanced XLR inputs allow connection to compatible professional audio sources, while Speakon and binding-post outputs provide speaker connection options. Selectable 120Hz high-pass and low-pass filters support suitable system configurations. The amplifier's 2U rack-mount design allows it to be installed in compatible equipment racks, making it practical for both portable sound systems and fixed installations. Speaker impedance, power handling and system wiring must be checked before connecting loudspeakers.

Features

• Two-channel Class H power amplifier
• 1200W per channel at 8Ω
• 1800W per channel at 4Ω
• 3600W bridged output at 8Ω
• Stereo, Parallel and Bridge operating modes
• Selectable 120Hz high-pass and low-pass filters
• Balanced XLR audio inputs
• Speakon and binding-post speaker outputs
• 2U rack-mount design

Specifications

• Brand: Audiocenter
• Model: CT3600
• Product Type: Professional Power Amplifier
• Amplifier Class: Class H
• Channels: 2
• Stereo Output at 8Ω: 2 × 1200W
• Stereo Output at 4Ω: 2 × 1800W
• Bridge Output at 8Ω: 1 × 3600W
• Operating Modes: Stereo, Parallel, Bridge
• Filters: 120Hz HPF / LPF
• Audio Inputs: Balanced XLR

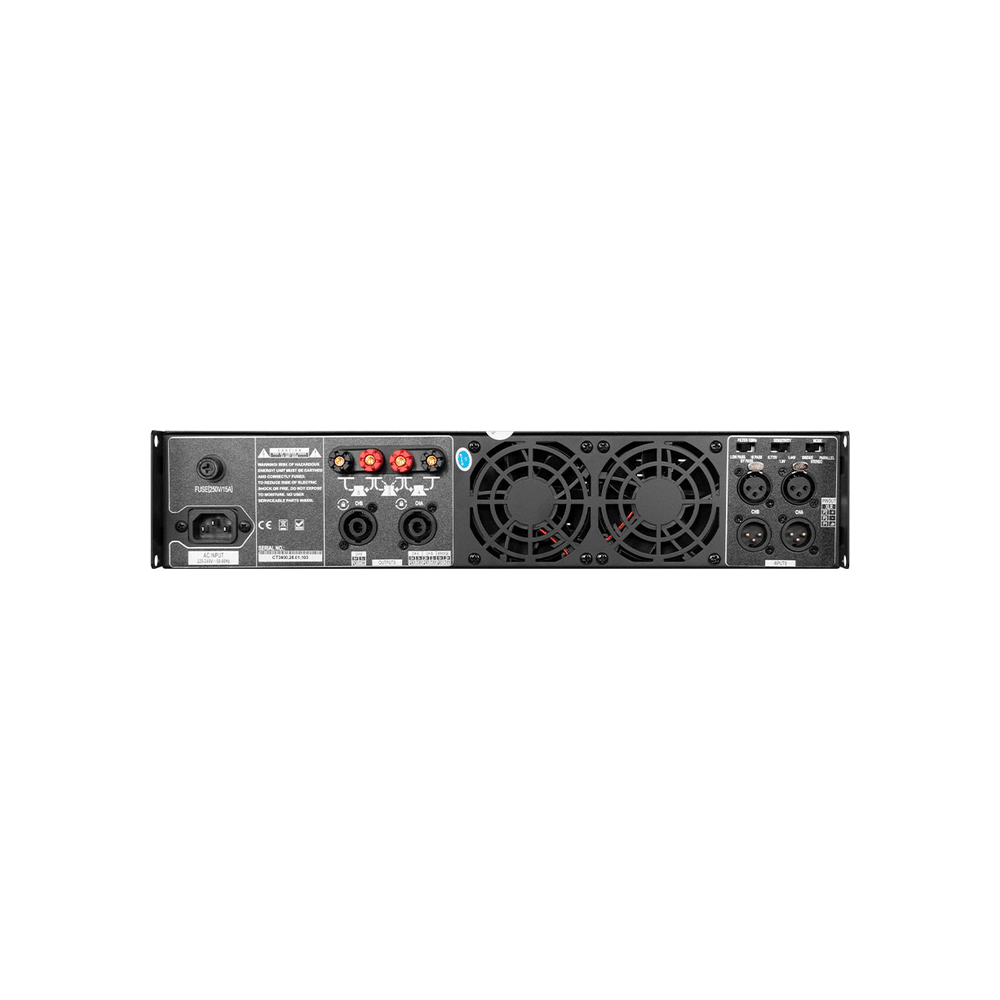

• Speaker Outputs: Speakon and binding posts
• Rack Height: 2U

Dimensions & Weight

• Dimensions (Length × Width × Height): 36.9 × 48.3 × 8.8 cm

What's in the Box?

• 1 × Audiocenter CT3600 Power Amplifier

• 1 × Power Cable

Warranty

• 12 Months
