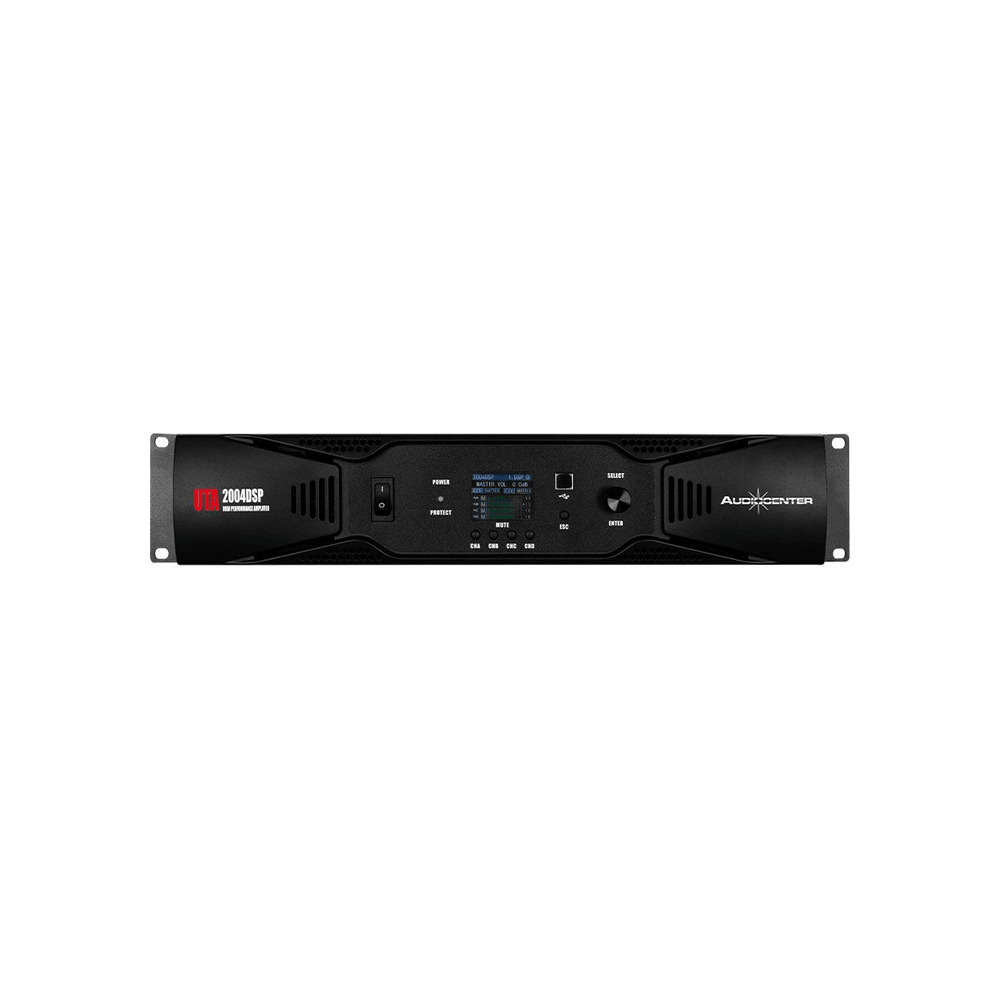

Audiocenter 4-Channel DSP Power Amplifier [UTA-2004DSP]

Audiocenter 4-Channel DSP Power Amplifier [UTA-2004DSP]

The Audiocenter UTA-2004DSP is a four-channel professional power amplifier with integrated digital signal processing for compatible passive loudspeaker systems. It is intended for applications such as live sound, events, houses of worship and fixed audio installations where multiple amplifier channels and configurable speaker processing are needed. Four amplifier channels can support different system layouts when loudspeaker impedance, wiring and power handling are correctly matched. The rack-mount design allows the amplifier to be installed alongside compatible mixers, signal processors and other professional audio equipment.

The UTA-2004DSP combines Class D amplification with DSP functions including equalisation, FIR processing, crossover filters, delay and limiting. Network and USB connections support compatible configuration workflows. XLR inputs and Speakon outputs provide professional audio and loudspeaker connectivity. Its two-rack-unit format suits compatible equipment racks. Output ratings depend on the stated measurement conditions, so they should not be presented as continuous power without verification. Installation should follow the manufacturer’s instructions and the exact specifications of the South African supplier model.

Features

• Four-channel Class D DSP amplifier
• 48kHz/24-bit DSP processing
• 15-band EQ, FIR, crossover, delay and limiter
• RJ45 UDP/IP network control and USB-B

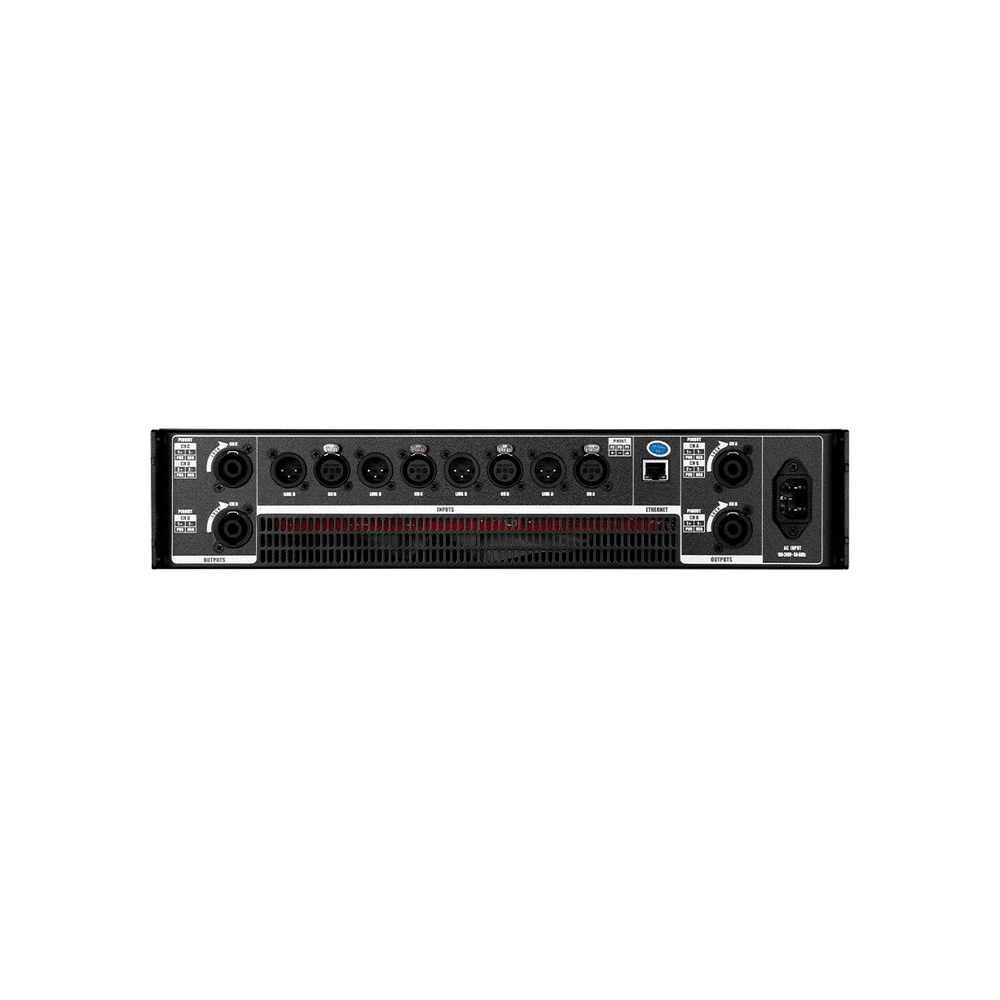

• XLR inputs and Speakon speaker outputs

Specifications

• Brand: Audiocenter
• Model: UTA-2004DSP
• Product type: Power Amplifier
• Four-channel Class D DSP amplifier
• 48kHz/24-bit DSP processing
• 15-band EQ, FIR, crossover, delay and limiter
• RJ45 UDP/IP network control and USB-B
• XLR inputs and Speakon speaker outputs
• 2U rack height
• Supplier listing: 4 × 1400W at 8Ω and 4 × 2000W at 4Ω (1kHz, 20ms burst, 1% THD+N);

Dimensions & Weight

• Length × Width × Height: 40.4 × 48.3 × 8.8 cm
• Net weight: 10 kg net

What’s in the Box?

• 1 × Audiocenter 4-Channel DSP Power Amplifier [UTA-2004DSP]

Warranty

• 12 Months
