Hybrid B1800MK6 Amplfier

Hybrid B1800 Mk6 2-Channel 1,800 W Power Amplifier

The Hybrid B1800 Mk6 is a robust two-channel professional power amplifier designed for 19-inch rack installations. It delivers 2 × 900 W RMS into 4 ohms or 2 × 600 W RMS into 8 ohms in stereo and parallel modes. For applications requiring a single higher-powered output, the amplifier can deliver 1 × 1,800 W RMS into 4 ohms in bridged mode. Its selectable operating modes make it suitable for compatible professional PA, installed-audio and mobile sound-reinforcement systems.

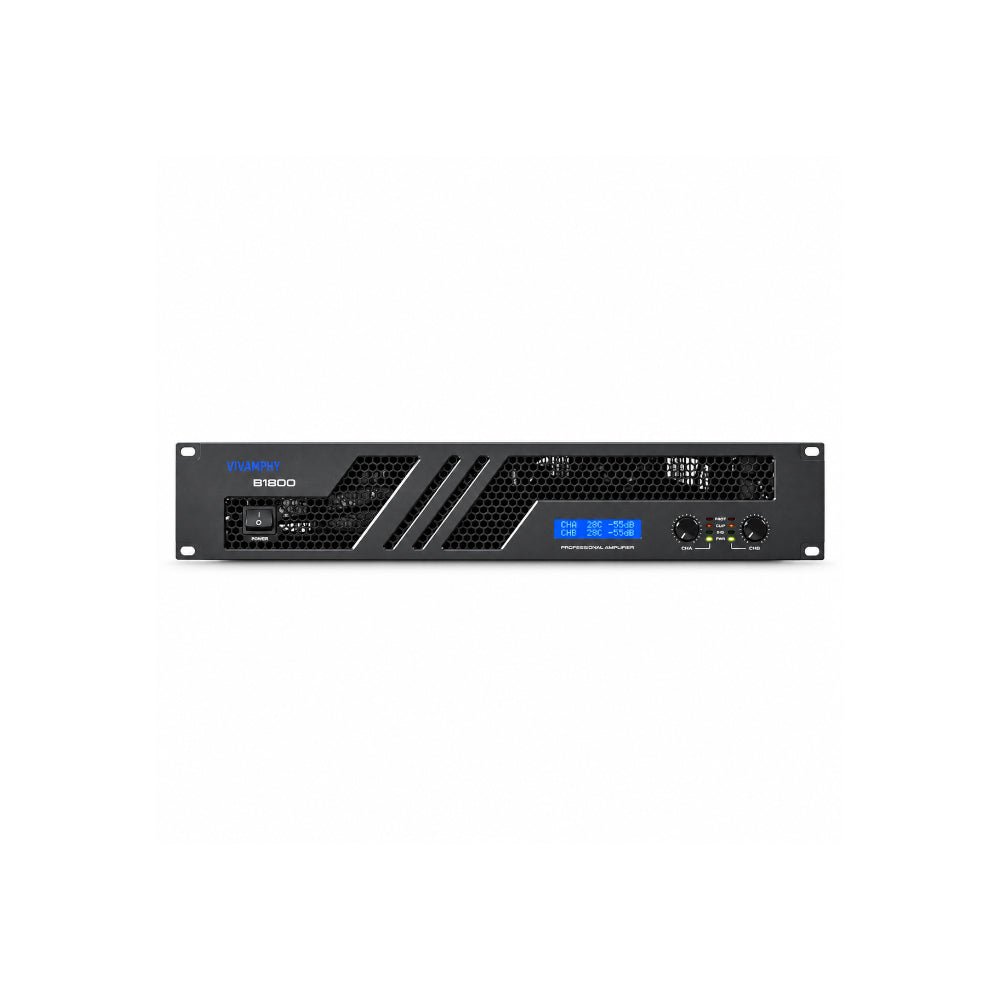

A front-panel LCD displays channel gain, channel temperature and mains voltage, while separate LEDs indicate power, signal, limiting and protection status. Built-in protection includes active clip limiting, impedance sensing, soft start, thermal protection, DC protection and subsonic-frequency limiting. Forced-air cooling assists with temperature management during operation. Rear-panel connectivity comprises two female XLR inputs, two male XLR link-through connectors and two NL4-compatible speaker outputs. Front and rear controls include dual rotary gain controls, power, ground-lift and operating-mode switches.

Features

• Two-channel professional power amplifier
• Stereo, parallel-input and mono bridged operating modes
• Up to 2 × 900 W RMS in stereo or parallel mode
• Up to 1 × 1,800 W RMS in bridged mode
• Front-panel LCD status display
• Signal, limit and protection LED indicators
• Active clip limiting
• Impedance-sensing protection
• Soft-start circuitry
• Thermal and DC protection
• Subsonic-frequency limiting
• Forced-air cooling
• Balanced XLR inputs and signal link-through connections
• NL4-compatible speaker outputs
• Designed for 19-inch rack installation

Specifications

Amplifier

• Brand: Hybrid
• Model: B1800 Mk6
• Product type: Two-channel power amplifier
• Number of channels: 2
• Rack format: 19-inch
• Stated rack height: 2U
• Operating modes: Stereo, parallel input and mono bridged
• Cooling system: Forced air

Power Output

• Stereo/parallel at 4 ohms: 2 × 900 W RMS
• Stereo/parallel at 8 ohms: 2 × 600 W RMS
• Bridged mono at 4 ohms: 1 × 1,800 W RMS

Protection

• Active clip limiting
• Impedance sensing
• Soft start
• Thermal protection
• DC protection
• Subsonic-frequency limiting

Controls and Indicators

• Gain controls: 2 × rotary
• Power control: On/off switch
• Ground-lift switch: Yes
• Operating-mode switch: Yes
• LCD information: Channel gain, channel temperature and mains voltage
• LED indicators: Power, signal, limit and protection

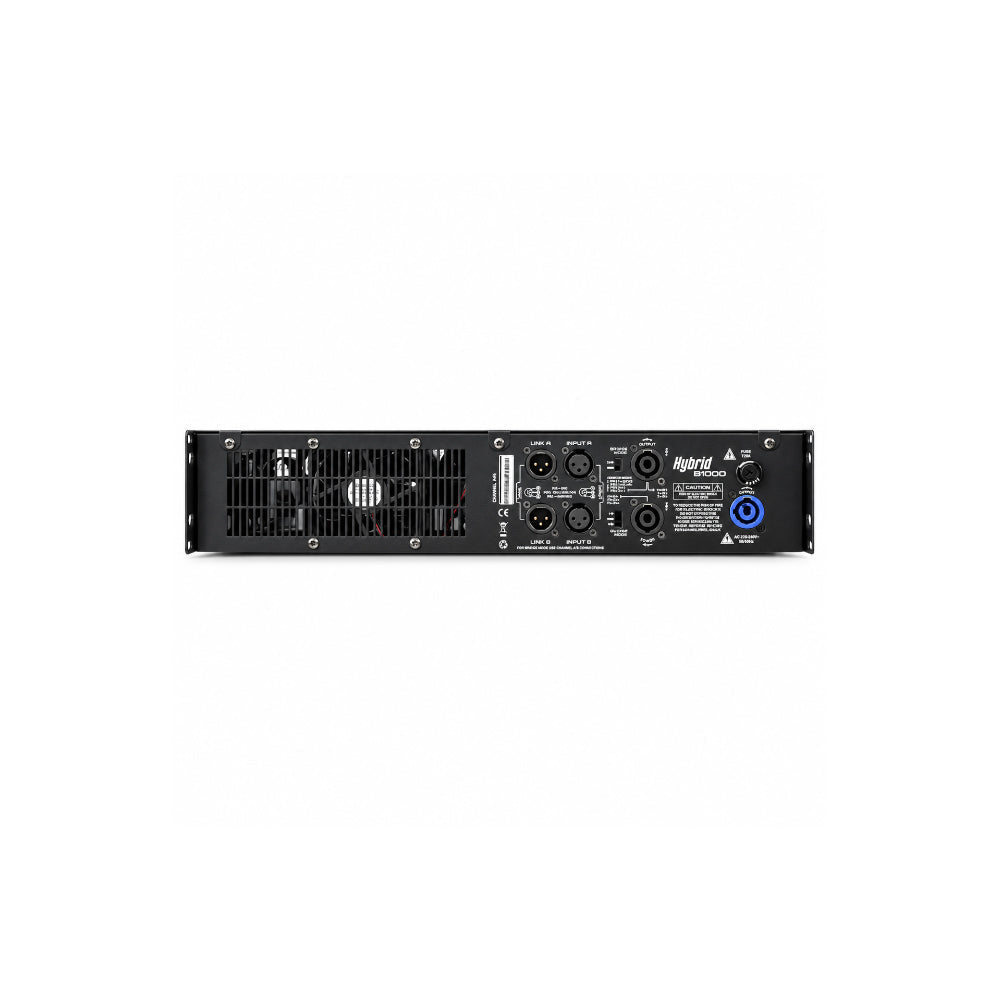

Connections

• Inputs: 2 × panel-mounted female XLR
• Signal link-through: 2 × panel-mounted male XLR
• Speaker outputs: 2 × NL4-compatible connectors
• Mains input: Not specified

Dimensions & Weight

• Dimensions: 38.7 × 48.7 × 9.9 cm (Length × Width × Height)
• Weight: 16.3 kg

What’s in the Box?

• 1 × Hybrid B1800 Mk6 power amplifier

Warranty?

• 12 Months
