Hybrid B2400MK6 1200W 2-Channel Speaker Amplifier
Description
The Hybrid A-series power amplifiers have been serving the African audio professionals since the 1990s. Now, 25 years later, the MK6 A-series offers the same value and quality but with better output performance and features compared to its predecessors.

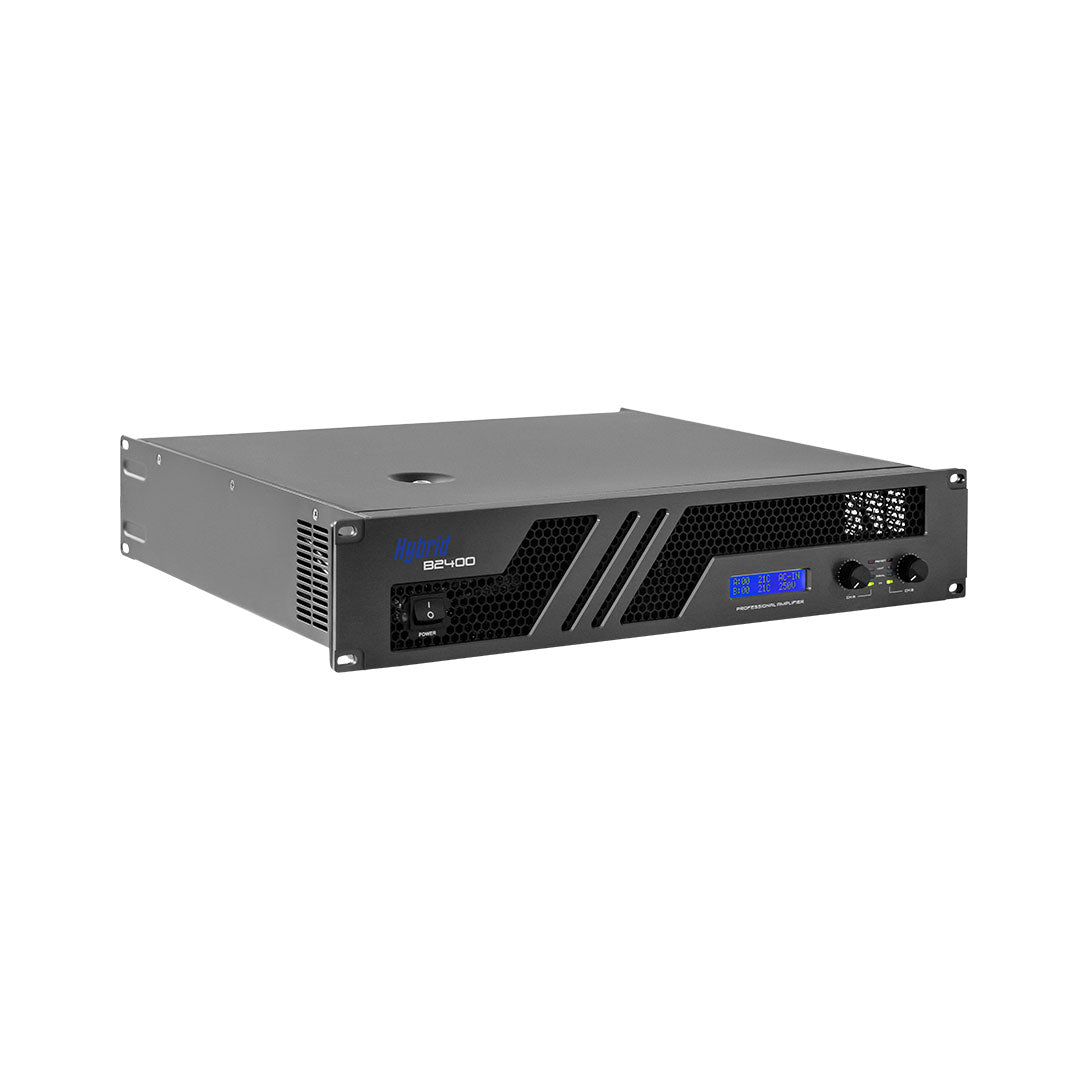

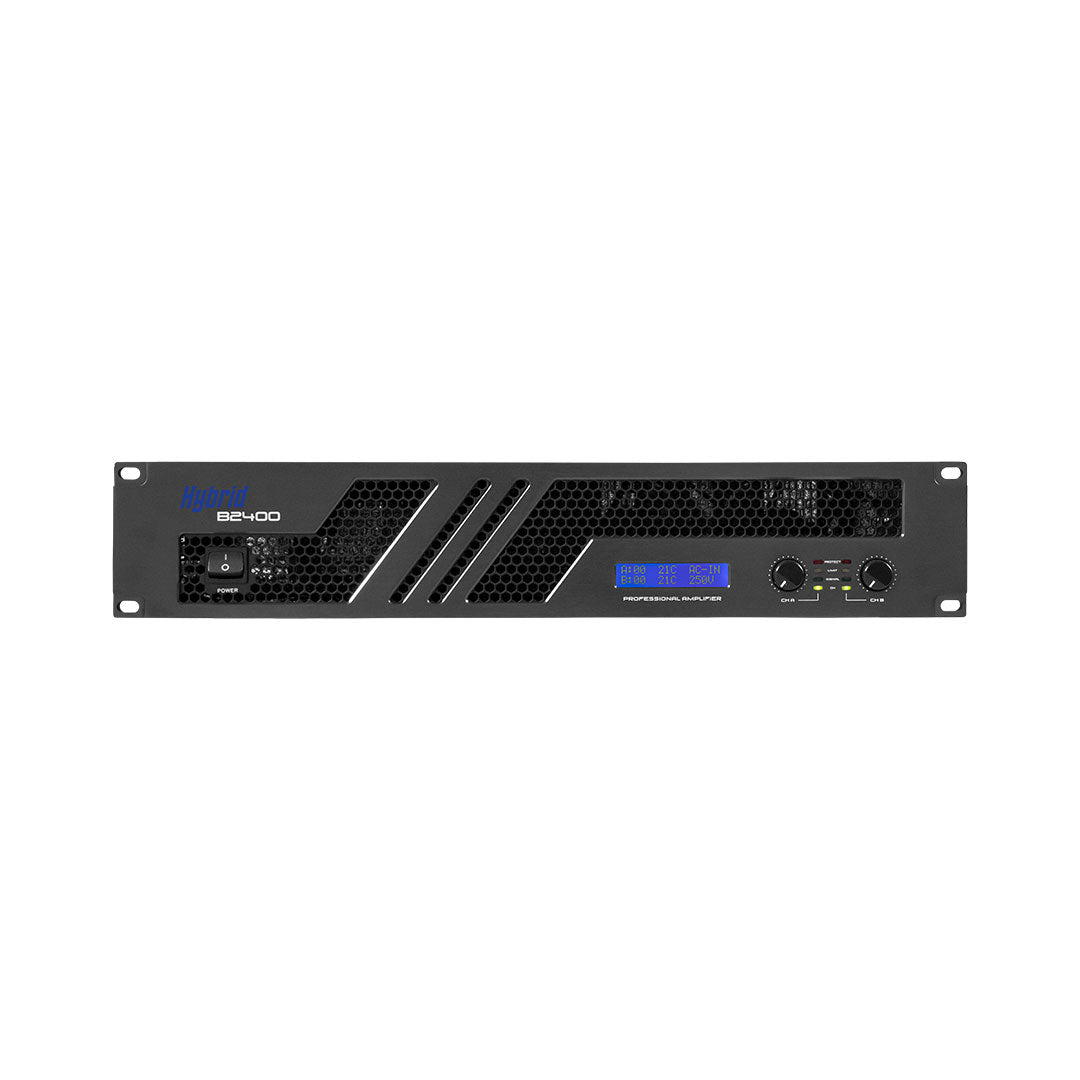

The Hybrid B2400 MK6 is a robust, 19″, 2U rack-space, 2 channel power amplifier with a comprehensive onboard, user accessible and editable DSP (Digital Signal Processor).
Features
Channels: 2
Power: 2 x 1200W RMS/4Ω – Stereo mode/Parallel mode
Power: 2 x 800W RMS/8Ω – Stereo mode/Parallel mode
Power: 1 x 2400W RMS/4Ω – Bridged mode
Protection: Active clip limiting, impedance sensing, soft start, thermal protection, DC protection and subsonic frequency limiting
Cooling: Forced air cooling
Controls: Dual rotary gain control encoders, on-off switch
Indicators: LCD screen, On LED, Signal LED, Limit LED, Protection LED
DSP
Utilities: Load pre-set from disk, Save pre-set to disk, Read pre-set from amplifier, Write pre-set to amplifier, Upgrade firmware, Write default pre-sets
Recall Pre-sets: 1 to 8
Operation Mode: Stereo, Parallel, Bridge
Input Gain (CHA & CHB): 6dB to -33dB
Electronic Crossover (CHA & CHB): Bypass switch, LP Frequency (20Hz to 20KHz), LP Filters (Linkwitz-Riley, Butterworth & Bessel), LP Slope (6,12,18 & 24dB/oct), HP Frequency (20Hz to 20KHz), HP Filters (Linkwitz-Riley, Butterworth & Bessel), HP Slope (6,12,18 & 24dB/oct)
EQ 1-8 (CHA & CHB): Frequency (20Hz to 20KHz), Q (0.1 to 30), Filter Type (Bypass, PEQ, Low Shelf, High Shelf, Notch, All Pass, Low Pass & High Pass)
Time Alignment (CHA & CHB): 0 to 17mS
Limiter (CHA & CHB): Threshold (0 to -60dB), Attack (1 – 100mS), Release (1 – 1000mS)
Output Gain (CHA & CHB): 0 to -30dB
Phase (CHA & CHB): 0 & 180°

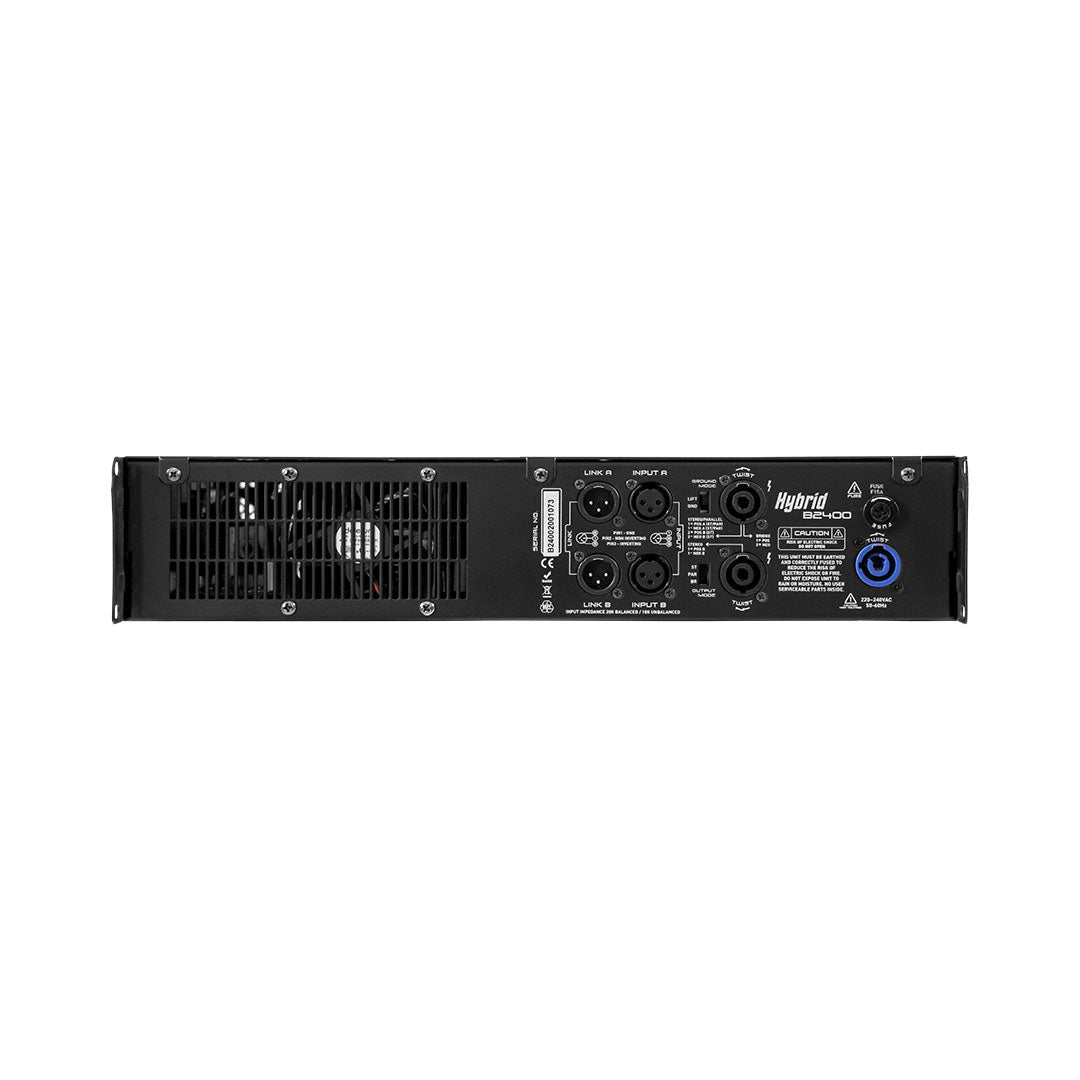

Inputs: 2 x XLR Female panel mount connectors
Link-thru: 2 x XLR Male panel mount connectors
Outputs: 2 x NL4 (Speakon)
Dimensions (W x H x D): 487 x 99 x 387mm
Weight: 17.3kg
