Hybrid Active X-Over Processor [CX223]

Hybrid CX223 2-Way Stereo / 3-Way Mono Active Crossover

The Hybrid CX223 is a versatile active crossover designed for 2-way stereo and 3-way mono sound system configurations. It is particularly suited to active audio systems using separate sub-bass and mid-top cabinets, allowing frequencies to be divided and directed to the appropriate outputs. The CX223 also provides a dedicated mono subwoofer output, making it suitable for systems that require a summed bass signal alongside the main low, mid or high-frequency outputs. With crossover frequency control from 45Hz to 9600Hz on Channels 1 and 2, it provides flexible frequency management for different professional audio setups.

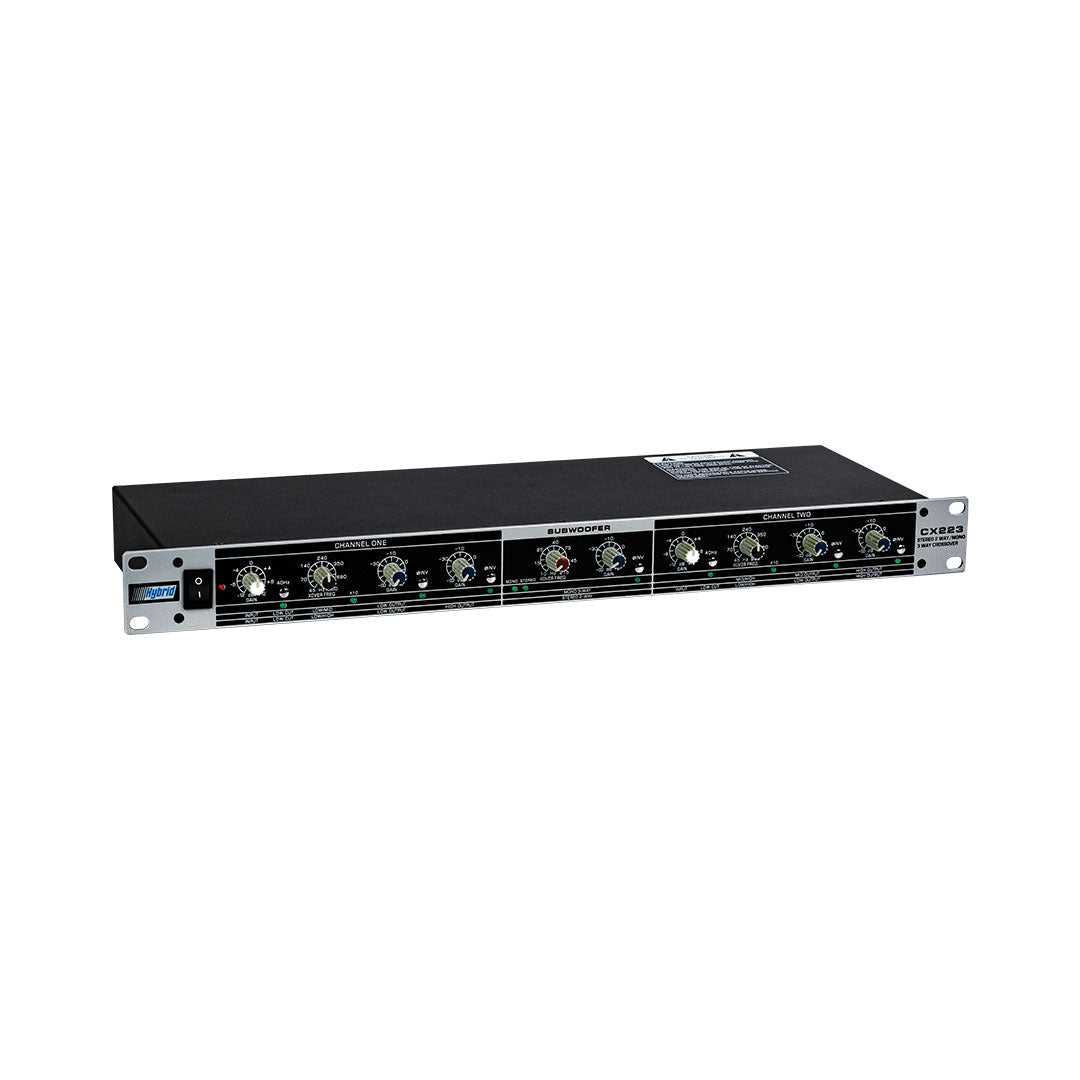

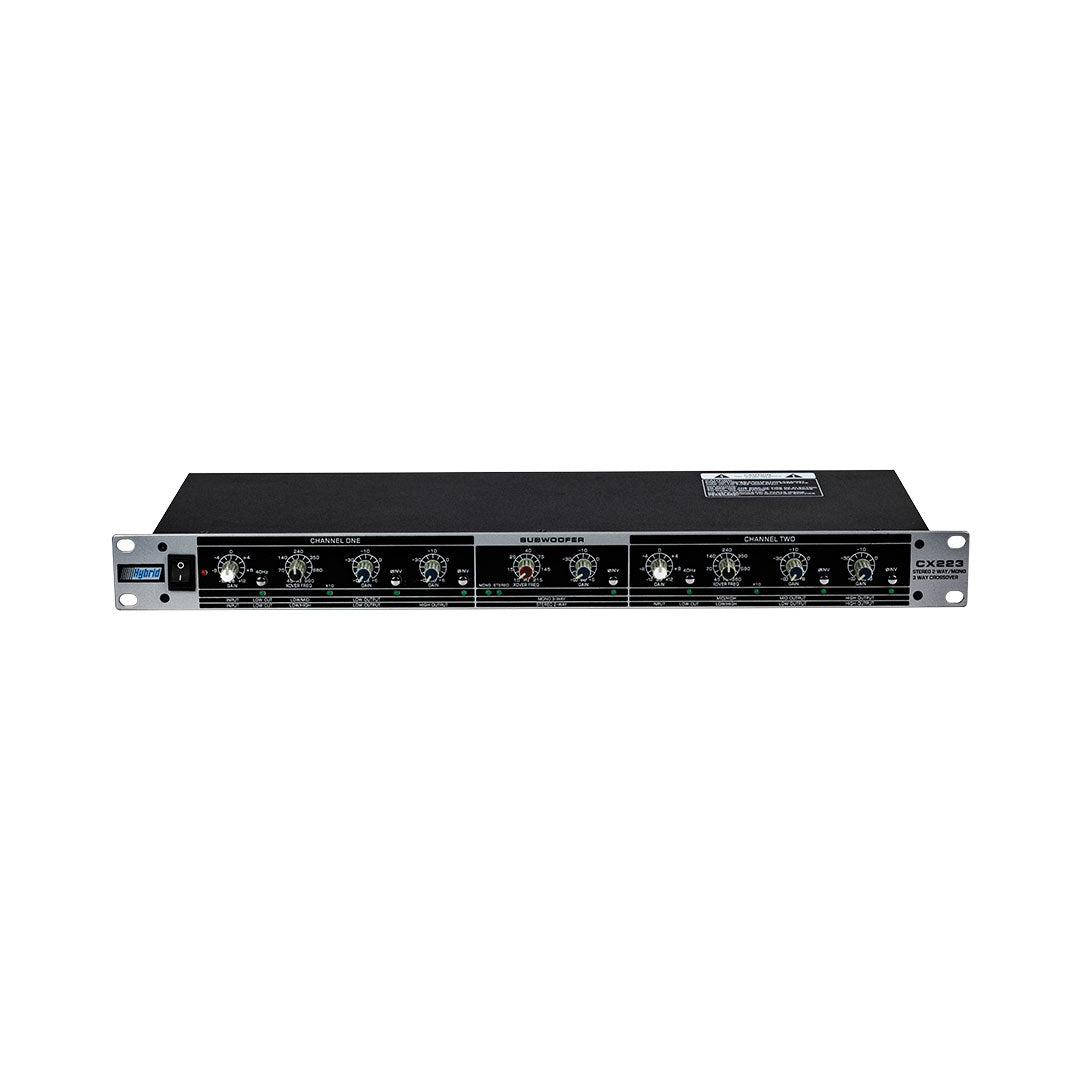

The CX223 features comprehensive front-panel controls that make system configuration and level adjustment straightforward. These include two input gain controls, crossover frequency controls, a dedicated subwoofer frequency control and five output gain controls. Output phase invert and a 40Hz input low-cut function provide additional control when configuring the system. Front-panel LED indicators clearly display low-cut, phase invert, mono/stereo and frequency ×10 status. XLR female inputs and XLR male outputs provide connections for compatible professional audio equipment, while rear-panel switches allow selection between mono and stereo operation and activation of the frequency ×10 function.

Features

• 2-way stereo and 3-way mono active crossover operation
• Dedicated mono subwoofer output
• Suitable for systems with separate sub-bass and mid-top cabinets
• Adjustable crossover frequency for Channels 1 and 2
• Dedicated subwoofer frequency adjustment
• Independent input and output gain controls
• Output phase invert function
• 40Hz input low-cut function
• Mono/stereo operating mode selection
• Frequency ×10 function
• Front-panel LED status indicators
• XLR inputs and outputs

Specifications

• Brand: Hybrid
• Model: CX223
• Product Type: Active Crossover
• Operating Modes: 2-way stereo / 3-way mono
• Applications: 2-way stereo with mono subwoofer output; 3-way mono with mono subwoofer output
• 2-Way Stereo Outputs: 2 × Low, 2 × High, plus 1 × separate Subwoofer output
• 3-Way Mono Outputs: 1 × Low, 1 × Mid, 1 × High, plus 1 × separate Subwoofer output
• Channel 1 & 2 Crossover Frequency: 45Hz–9600Hz
• Subwoofer Frequency: 10Hz–215Hz
• Front-Panel Controls: 2 × Input Gain, 2 × Frequency, 1 × Subwoofer Frequency, 5 × Output Gain, Output Phase Invert, 40Hz Input Low-Cut
• Front-Panel Indicators: Low-Cut LED, Phase Invert LED, Mono/Stereo LED, Frequency ×10 LED

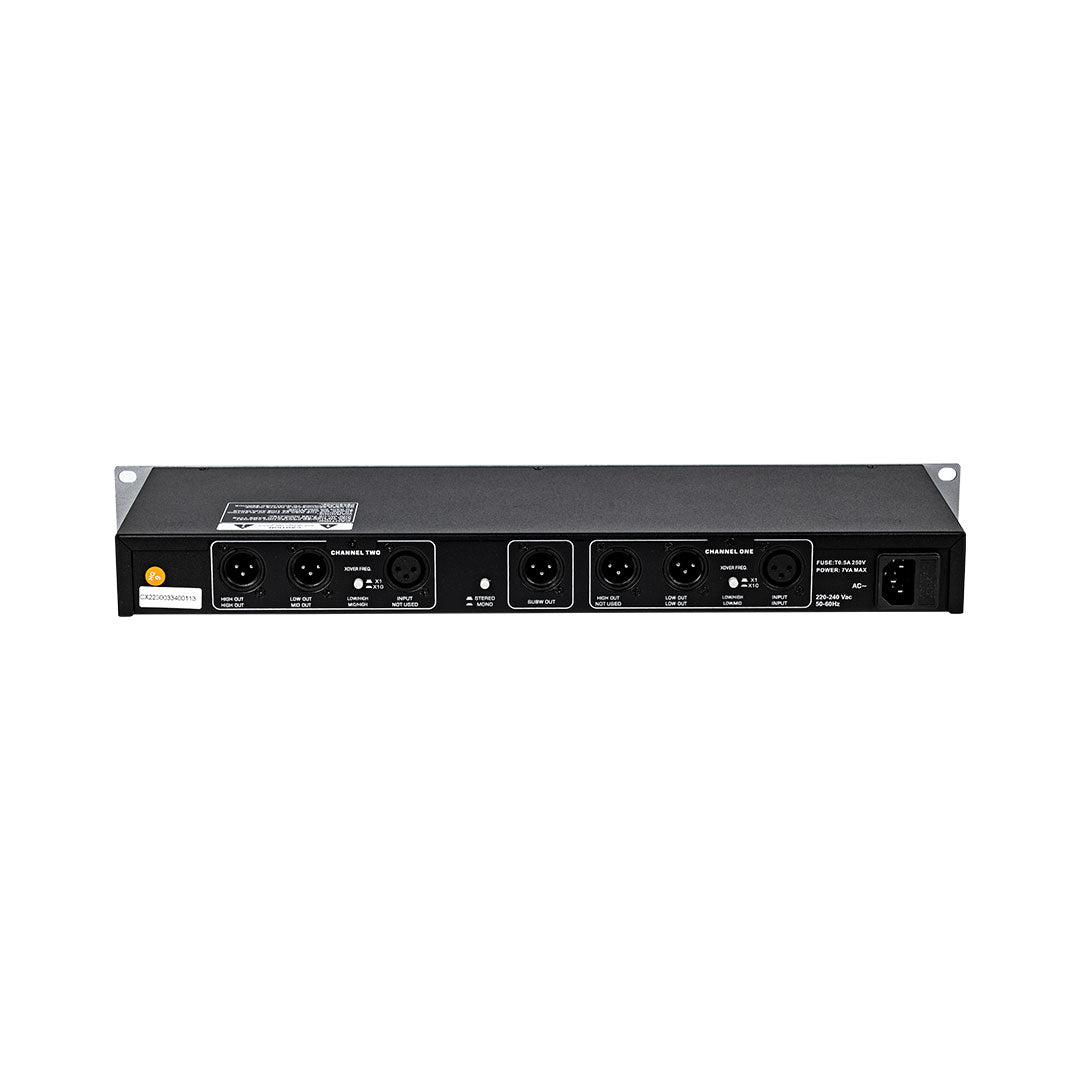

• Rear-Panel Controls: Mono/Stereo switch, Frequency ×10 switch
• Inputs: XLR Female
• Outputs: XLR Male

What’s in the Box?

• Hybrid CX223 Active Crossover

Warranty?

• 12 Months Warranty
